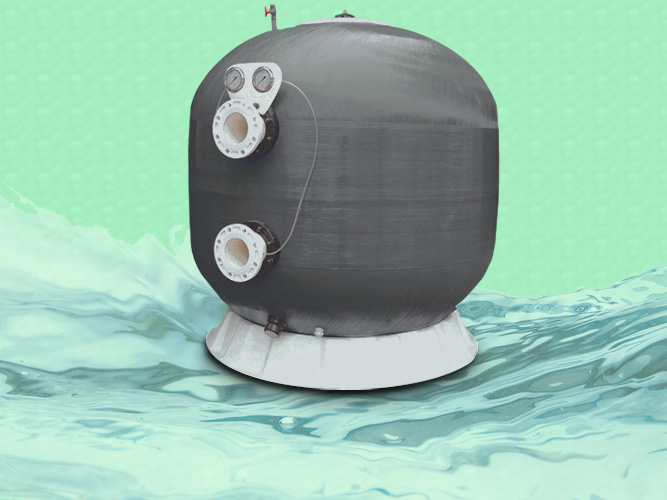

FCG 1200 hi-rate FILTER
Design flow : 45 m3/h
features:
- Built to be tougher, longer lasting and better performance
- Constructed of polyster resin and non-corrosive fiberglass filament.
- All internal components and connections are injection molded PVC.
- UV resistance surface allows working under sunshine

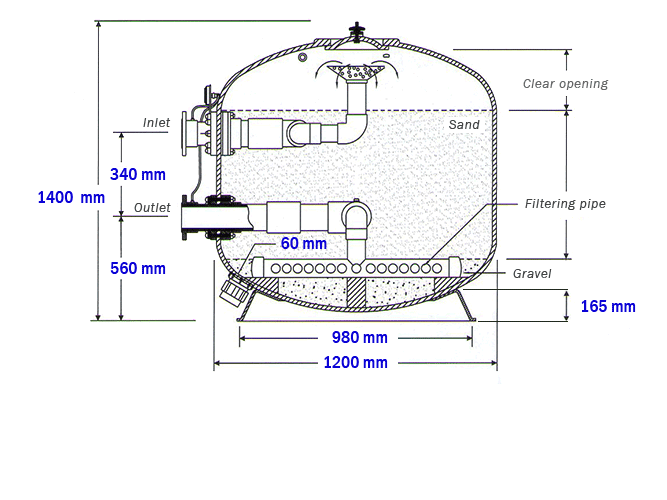

specification:
- Filter area : 1,13 m2
- Design flow : 45 m3/h
- Standard volume : 2,2 m3
- Sand weight : 1250 Kg
- Gravel weight : 275 Kg
- Standard weight : 122 Kg
- Pipe size : 3 inch
- Maximum working pressure 36 psi/2,5Kg/cm2
- Maximum temperature: 50°C
